Quick Connect Wire Connectors for 18

[Number of Items: 100]
Others have done an excellent job of doing photos and videos of the product so I will skip that for now. Overall, these connectors work well and are quite easy to use as long as you confirm the wire gauge that you are using. I was using these to connect some drivers in a home audio speaker that had been cut and I didn't want to solder them back together. The wire gauge was slightly larger (16 AWG apparently) so the wire didn't slip into place as I had hoped. A bit of careful work with an Exacto knife to shave the shielding down actually worked, though it took about 20 - 30 minutes to get it right since I needed to do this with 4 wires. But once that was done everything snapped together well using needle-nose pliers and after connecting things the drivers worked perfectly! I did wrap electrical tape entirely around the connectors and the wire at each end to ensure that nothing disconnected once I reinstalled the driver in the cabinet, but now I have a fully functioning speaker again! (And about 91 extra connectors! I may be looking for things to use them on!)

[Number of Items: 60]
The connectors seem secure. My biggest problem was cheap wires that sometime come on electronics and switches break easily no matter what I do. The best connectors won't solve that.

[Number of Items: 100]
The clips seat into each other cleanly but don't click in each other once connected, so beware a gentle tug will unseat them from each other. Feeding the wire into the piercing end and compressing the clear plastic housing down onto it un hinged the one end a bit, requiring wiring pliers to compress it completely. All that said, once fed in and compressed, the wire was held solidly into the clip.The wire size is limited to what you can feed through the hole in the end of the clear plastic so the max gauge use is dummy proof.

[Number of Items: 100, Number of Items: 100]
Kind of exactly what I needed? Seem very sturdy.Simple to use... Just feed the wire into the hole and snap the cover down.Difficult to get back apart which is nice so I don't need to worry about wires coming out.The connection between the 2 pieces is tight but it doesn't need to be forced either way.Using it for a diy thermostat build and this will make wiring it up drastically easier than trying to deal with screw terminals and such.Think it's a good deal for the cost and I'm happy I got them.Not sure they would great for anything that gets excessive vibration but for stationary items... Seem like they will be perfect.

[Number of Items: 100, Number of Items: 100]
Today I am reviewing a set of quick connect wire connectors. What a clever design. This will take a wire (18-22 gauge) and without stripping it, twisting it, or messing with it in any way, join it to another wire in a quick little snap. There are little metal teeth in side of the thing and once you feed the unprepared wire into the forward port, you snap it together...with pliers to ensure it is fully seated, and you're done. Do the same thing to the other wire and then snap the two together. That's it! So easy it's crazy. I would say it's an easy button, but not for wet environments unless you use some shrink tubing intended for outside use over the entire thing. From a durability standpoint, if you did put some shrink tubing over it I can't see it going bad for a very long time. There are physical metal connections that are established and because the teeth are gripping it, you would have to tear them apart to degrade the connection. I would say this is an ingenious product, but not a substitute for a professional connection. DIYers will love it, though for being a cost effective and rapid way to make a solid connection.

[Number of Items: 100, Number of Items: 100]
I do a lot of hobby work with ESP32 boards and similar small electronics, and these have earned a permanent spot on the bench.Functionality: The best thing about them is something the listing doesn't tell you. If you put one male and one female on each end of a cable, and mirror that on the mating cable, you've built yourself a keyed connector. It physically cannot go together backwards. On a two-wire DC run where reversing polarity means letting the smoke out of a board, that's worth a lot more than the twenty seconds it costs you.Quality: They hold together snugly. There's a positive click when they seat, and no wiggle once they're together. They also come apart when you want them to, which is the harder half of that balance to get right. A lot of connectors in this size range are either loose or permanent, and these are neither.Compatibility: Rated for 18-22 AWG, and that covers most of what I run for small projects. The 22 AWG hookup wire I use for sensor leads seats fine and holds.Ease of use: Here's my one gripe, and it's with the listing rather than the product. It's sold as tool-free locking, but the listing photo itself says to press the cover down firmly with pliers to fully secure the wire. That's not tool-free. It's a small thing, and pliers are already sitting on the bench, but the claim on the box doesn't match the instructions in the photo. Call it what it is.Durability: Nothing here suggests early failure. The plastic doesn't have that brittle feel that says it'll crack on the third disconnect, and the contacts look properly formed. Time will tell after a season of plugging and unplugging, but the build indicators are good.Value for money: A hundred pieces means you stop rationing them, and that changes how you work. You start using connectors on subassemblies you'd otherwise have soldered permanently, which makes troubleshooting a lot less painful later.Bottom line: an inexpensive way to make small-gauge wiring modular and keyed against reversed polarity, with the only real knock being a tool-free claim that the manufacturer's own instructions contradict.Highly recommended.

[Number of Items: 100]

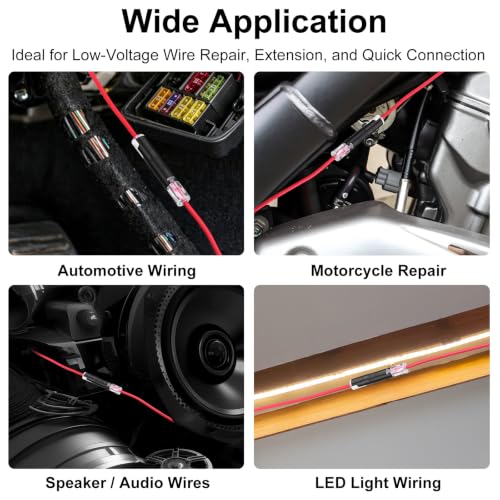

I purchased these quick-connect wire connectors for hooking up audio controls and other low-voltage devices, and they have made wiring much faster and easier. Instead of soldering wires together, I can simply connect them with these connectors, saving both time and effort.One of the biggest advantages is that if I ever need to replace a cable or make changes to the wiring, I can easily disconnect the wires and reconnect them without having to cut, strip, or re-solder everything. That makes troubleshooting and future repairs much more convenient.The connectors appear to be very well made. They lock the wires securely in place, and once connected, they provide a solid connection without worrying about the wires pulling apart during normal use.I also like that they’re compact enough to fit into tight spaces, making them useful for audio equipment, automotive wiring, LED projects, and other low-voltage applications.Overall, these are high-quality single-wire connectors that are simple to use and work exactly as advertised. If you’re looking for an easy, solder-free way to connect and disconnect wiring while still maintaining a secure connection, I would definitely recommend these.

[Number of Items: 100, Number of Items: 100]

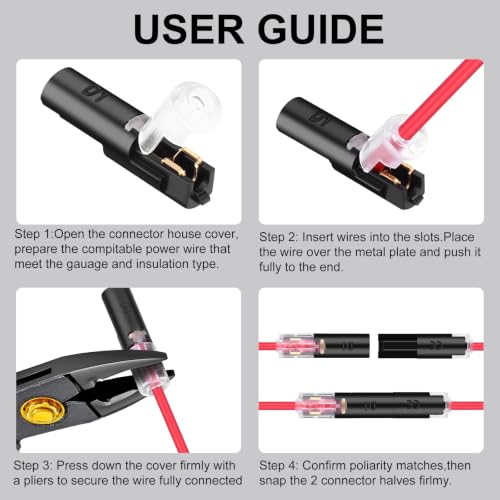

I had never used connectors that looked like this before so thought I's give them a try. Here are my thoughts based on my experience1. they come in a resealable bag of 100 connectors (pic 1)2. the connectors have one end where the wire pushes in and then you pinch it shut with pliers (pic 2) yes while it says it is "tool-free" that's not really accurate you will need pliers of some kind. once the wire is connected to both ends of the wires the two connectors push together to form a low profile connection that can be connected and unconnected as needed3. I was working on trailer lights with 18 gauge wire (see pic 3) and since these connectors are rated for 18-22 gauge wire thought I'd give them a try . first the instructions enclosed with the connectors was not accurate it showed striping the wire before inserting into the plug but that does not work while the wire will fit into the hole when clipped shut it will not grip the wire and can easily be pulled out (see pic 4) but what I found was that 18 gauge wire will not fit into the hole with the insulation on I tried two different wires thinking maybe one type had a thicker insulation but neither one would fit. I then took some 20 gauge wire and it was a tight fit but it did slip into the hole and I was able to pinch the end shut and connect the two connectors (see pic 5) based on my experience I would say it will work fine with 20-22 gauge wire but not on 18conclusion: over all for 20-22 gauge wire these connectors are fairly simple to use are a nice low profile connector that is easy to connect and disconnect but because they are advertised as "tool-free" and will work on "18-22Awg " when it will only work on 20-22AWG I can only give it 4 stars
