LED Driver Dimmable 24V

[Set name: 96W]
I ordered this 96W Dimmable LED Driver to control some recessed LED strip lighting for a bathroom remodel. Since it was advertised as compatible with the specific Bluetooth switches we use (Lutron), it seemed like a solid choice.The wiring instructions are straightforward and easy to follow. The setup is clear enough that it gave us confidence we could DIY the project ourselves. We have a fair amount of DIY electrical experience, plus an electrician brother-in-law to consult if needed, but I think this would be accessible even for someone with less experience — low-voltage lighting is fairly forgiving overall.We're currently only planning to run about 40W of lighting on this driver, but since we may add more lighting down the line, we intentionally sized up. There's good information available online about properly sizing a driver — the general rule is to leave some extra wattage headroom above your total light usage to account for line loss. At 96W, this driver has enough capacity for most systems, though it's still worth calculating your specific load rather than assuming any driver will be oversized enough.This is a well-made driver that was easy to install, and I'd purchase it again.

[Set name: 60W]

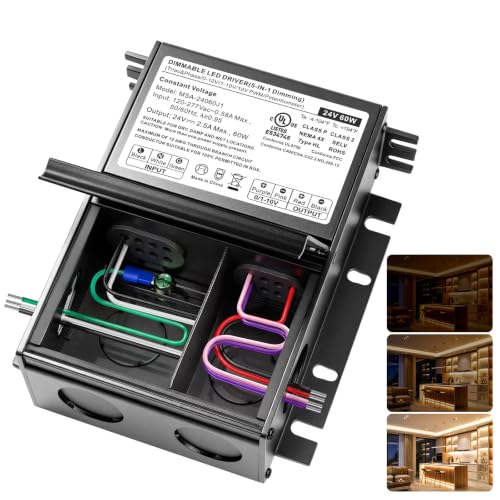

​Needed a solid 24V driver for a low-voltage lighting project and picked up this REYLAX 60W unit. It’s been working great so far and does exactly what it’s supposed to do.​A few things that stood out to me:​Wiring/Installation: The quick-install junction box design makes hookup a breeze. Having pre-drilled cable entry holes on all four sides gives you plenty of flexibility for routing wires without tight bends. The push-and-pull cover makes getting to the terminals hassle-free.​Dimming & Performance: Paired it up with my setup and the dimming control is very smooth across the whole range. Zero noticeable flicker, buzz, or hum, which is usually my biggest complaint with cheaper drivers.​Build Quality: Solid metal housing, weather-resistant rating, and UL certified, so I feel safe leaving it running without worrying about overheating or electrical issues.​If you need a reliable 5-in-1 dimmable transformer that doesn't make any annoying buzzing noises, this one is definitely worth the money. Would buy again.

[Set name: 96W, Set name: 96W]

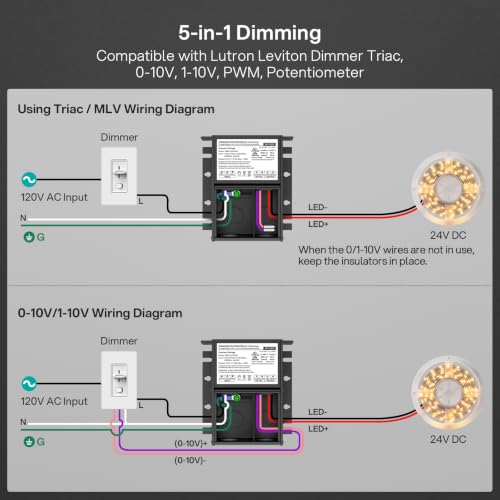

This 24V 96W LED driver accepts input voltage from 120-277 volts to meet your specific needs. Most household lighting in the US and Canada will be 120V, however some countries have different voltages, this should be a universal driver for most areas.Says 5 in 1 dimming, essentially it can dim via nearly any of the dimmer controls on the market, such as a Triac line voltage dimmer switch (Lutron, etc) or any of the 4 other dimming controllers that use a low voltage 0-10V. If you do use the low voltage dimmer, you will need to run a separate set of low voltage wiring for that. Note that only one type of dimmer switch should be used, if you use the Triac dimmer, the low voltage wires should be capped (and are) and not used.The size is a little thicker than what you would want for mounting underneath kitchen cabinets, although you can do that if you need. It is weather resistant for dust and moisture resistance like mounting outside under a roof. Says IP65 weather resistant rated, you would need to use liquid-tight conduit if used in an exposed area.The low voltage connections are required to be separated from the line voltage, so this has a divider between the two in the junction box.This driver is for 24V LED, both 12V & 24V are commonly available, so check your required voltage. Also check on your power needs, the length of the strip you intend to power, as well as the amount of LEDs will determine how much power your application needs. Not having a powerful enough driver will cause the lights to flicker, blink, or fail to power on, some of the larger drivers have a minimum wattage draw requirement so just over sizing the driver isn’t the solution either.UL listed for safety and to meet code requirements in the US and Canada.I have only installed the line voltage dimmer switches, not the low voltage 0-10V dimmers. On the Triac dimmer switch I have, the low end of the light dimmed down very nicely, smoothly, no flickering, no buzzing, just stellar performance as intended. Performance may vary, but that will likely be due to the switch, not this driver.Recommended buy

[Set name: 96W]
Excellent for silky-smooth dimming, with no flicker or buzzing response. Perfect for behind the bar lighting or even possibly pool lighting. Used it for under-cabinet LED strips and it's super reliable. Would recommend this absolutely!

[Set name: 60W, Set name: 60W]
Fully integrated LED driver box, knockout holes for hard conduit connections. Haven't seen one of these before, but easily handles electrical inspectors who tend to nitpick low voltage wiring setups. Looks great when installed inside kitchen cabinets or media center setups, especially for high paying customers. Well worth the $70. Easy installation for our electrician who no longer has to worry about mounting issues and loose wire connections.

[Set name: 96W, Set name: 96W]
This electrical module control unit, worked perfectly to hook up our LED lights that we put in our gaming room. It allowed everything to work properly and be able to dim according to our controls that we had put in for each different system. This was the higher wattage unit, and I would recommend you check the wattage if you’re upgrading your lighting system or adding lights to an existing system. This unit itself was able to allow us to hook up multiple linked units off the same control. It looks to be very quality made, and our electrician said it was a very good piece of equipment. The price I think was very fair comparable to what we had looked at when trying to find the perfect component. I give it an A+ and highly recommend it.

[Set name: 96W]

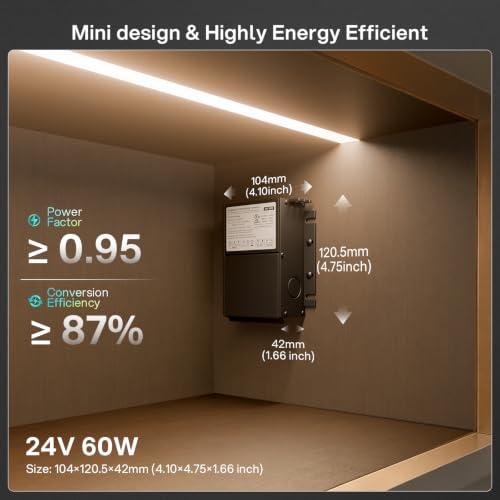

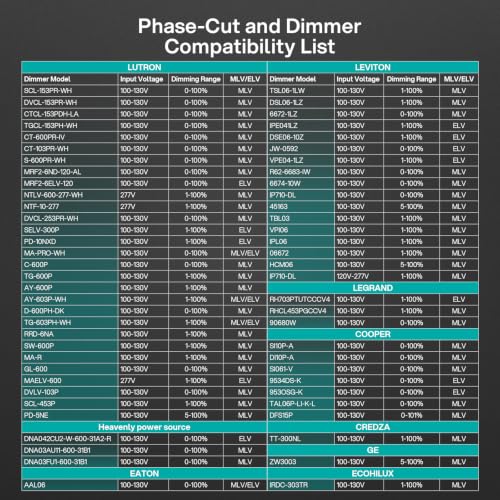

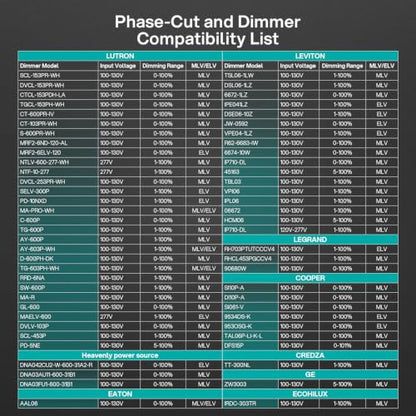

Seller has a very comprehensive ad copy, reposted verbatim for your reference:5-in-1 Dimming & High Compatibility: Adopts innovative MMPC Multi-Modal Phase-Cut Technology, boosting dimmer compatibility by 30%-40% compared with conventional TRIAC LED drivers.Works seamlessly with forward-phase, reverse-phase, TRIAC, MLV and ELV dimmers. Supports five dimming modes: TRIAC, 0-10V, 1-10V, 10V PWM and potentiometerHigh Energy Efficiency: Equipped with active PFC circuit, power factor ≥0.95, conversion efficiency exceeds 87%. It drastically reduces reactive power loss on circuits.A single 96W driver can save nearly $52 in electricity costs annually, cutting long-term operational expenses for commercial lighting0-100% Smooth Flicker-Free Dimming: Ideal for hotel lighting, commercial spotlights and whole-house smart lighting retrofits for villas.Delivers ultra-smooth, flicker-free dimming across full 0–100% brightness range.No minimum load requirementExtended Lifespan: Many drives claim a 50,000-hour lifespan, but low efficiency traps heat and silently ages capacitors.Our 87%+ efficiency generates 20% less heat than 83% models. For every 10°C drop in temperature, capacitor lifespan doubles—this is a physical law, not marketing hype.10 hours of use per day for 13 years. One-time installation, no more worriesEasy Installation: Featuring a screwless, quick-installation design, the junction box has pre-drilled cable entry holes on all four sides, supporting flexible cable routing from multiple directions.During installation, simply open the cover and connect the driver cables according to the markings. The cover opens and closes easily—just press and pull, and it's ready to use. IP65 protection rating, suitable for dry, humid and damp environmentsUL and FCC Dual Certified: Complies with UL8750, UL1310, Class 2 power supply, Class P and Type HL standards, and meets FCC Part 15B EMC regulations.Fully compliant with US local electrical codes, safe for both commercial projects and residential lighting renovationsHave a tendency to believe the sellers ad copy after close physical examination.Great use of materials, finish and fit.Good workmanship.All LED drivers are NOT created equal.Resist the urge to save money, electronics are usually very competitive with higher prices usually (not always) covering increased manufacturing cost.Look for safety labels and certifications like this.Available in a number of wattages to meet every need.Cost effective in the long haul.Online photos are ok except for not being actual size.Easy mounting.Fast installation.Good looking in person.Five Stars.
