SP805E WLED Controllers Kit

[Size: SP805E Controller]
Having an ESP32 board pre-loaded with WLED makes setting up addressable LED strips practically instant. The built-in microphone syncs lighting patterns to sound smoothly, and Wi-Fi connectivity allows for simple app control or integration into local smart home platforms.

[Size: SP805E Controller]

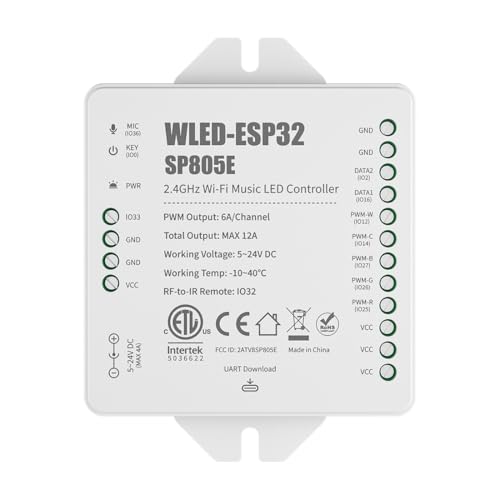

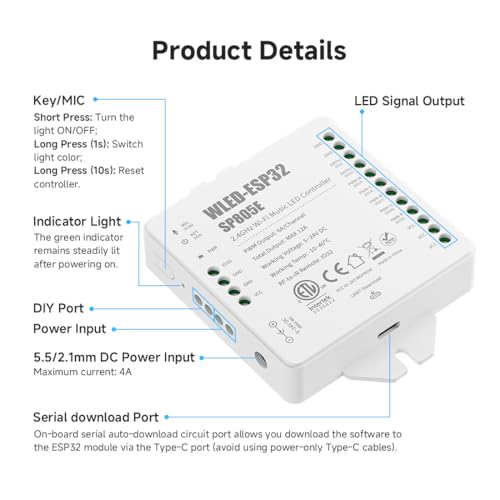

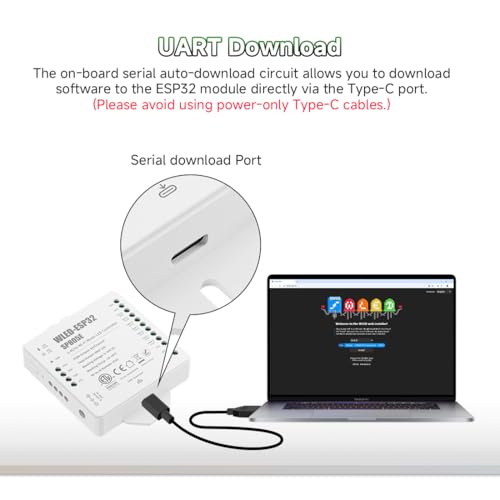

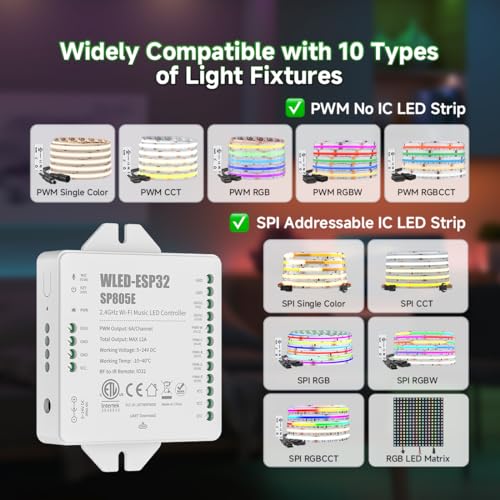

I picked up the BTF-LIGHTING SP805E WLED controller to upgrade my addressable LED setups without having to custom-solder an ESP32 board, and it has proven to be an ultra-versatile, plug-and-play solution. Pre-flashed with open-source WLED firmware, it instantly connects to the native WLED app via 2.4GHz Wi-Fi, completely skipping the headache of manually compiling code or flashing microcontrollers over command line.​The dual SPI output channels make running complex dual-zone addressable strips or 2D pixel matrix displays smooth and simple. It handles a wide range of popular 3-pin and 4-pin ICs—including WS2812B, WS2811, SK6812, WS2814, and WS2815—while simultaneously supporting standard PWM analog strips across single-color, CCT, RGB, and RGBCCT configurations. Having a built-in digital microphone is a huge win for audio reactivity, letting WLED’s audio-sync effects react instantly to ambient room sound or music without needing external audio splitters.​The board accepts a wide DC 5V–24V input range, matching standard strip voltages effortlessly. The onboard USB-C UART port provides a hassle-free interface for custom serial communications, fast data transfers, or flashing updated WLED firmware directly. Whether you are setting up dynamic ambient backlighting, segmenting custom LED zones, or integrating with Home Assistant via MQTT, this controller delivers rock-solid performance, robust connectivity, and limitless DIY customization straight out of the box.

[Size: SP805E Controller]
I’ve owned several BTF-LIGHTING products, and I’ve had a really good experience with them overall. They’ve been reliable, work well, and generally function exactly as expected. This controller has been no exception.One of the best things about this is that it uses an ESP32 and comes with WLED already loaded. That makes setup significantly easier because you don’t have to start by flashing the controller yourself. If you know your way around WLED, there’s a ton of flexibility here for customizing and controlling your LED setup.I especially like this for Home Assistant. WLED integrates really well into a smart home setup, and having a dedicated ESP32 controller makes it incredibly versatile.Obviously, there are a lot of configuration options, so your experience will depend somewhat on your LED strips and how you set everything up. But if you know what you’re doing, this essentially just works.So far, I haven’t encountered any issues. It’s flexible, reliable, and convenient, and I highly recommend it for anyone building a WLED or Home Assistant lighting setup.

[Size: SP805E Controller]
Just got it. I wanted to know what specific ESP32 was in it and couldn't find that info. Now that I have one in hand I can add here for others looking for the same info that it's an ESP32-D0WD-V3.

[Size: SP805E Controller]
As someone who enjoys experimenting with different DIY projects, I’ve found this to be a fun and useful component to keep on hand. It works with a wide range of LED strips and gives you plenty of flexibility for custom lighting setups.The controller feels well made, connects reliably, and does exactly what it is supposed to do. The built-in microphone, Wi-Fi control, and multiple output options make it suitable for everything from simple accent lighting to more involved LED projects.It may be more advanced than a basic plug-and-play controller, but for anyone who likes building and customizing their own lighting systems, it offers a lot of possibilities. Overall, it’s a solid-quality and versatile piece of hardware.

[Size: SP805E Controller]

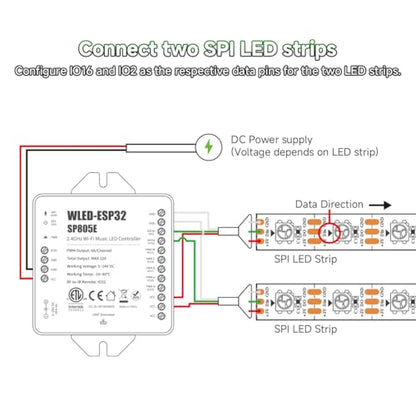

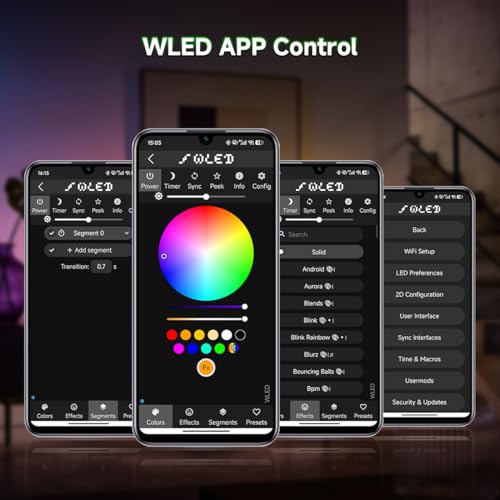

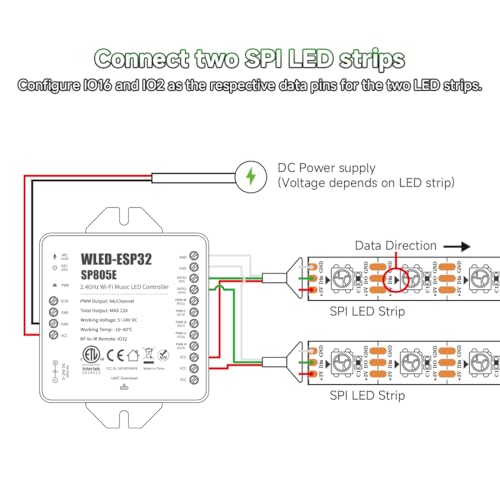

This SP805E controller is compatible with WLED and was easy to set up and use. Connecting through Wi-Fi makes it convenient to access the controls from an app without needing a dedicated physical controller nearby. Once connected, changing colors, brightness, and effects is straightforward, making it simple to customize a compatible LED strip or matrix. The built-in microphone also adds another creative option for lighting effects that respond to sound. Experimenting with different WLED configurations and visual patterns is genuinely fun, while the two SPI channels and broad strip compatibility provide room for more involved DIY setups. Considering the connectivity, feature set, and user-friendly operation, this controller offers very good value for the money

[Size: SP805E Controller]
I am an avid user of the WLED firmware. I use several controllers of these types indoors, as well as weather-rated ones for outdoors. This SP805E controller has two ARGB outputs, which is nice for controlling two such LED arrays from the same point of origin. This effectively doubles the length the LED arrays can be before they start showing signs of power or data loss. While LED strips can be daisy-chained, the greater the distance from the power source the less power effectively gets to the end of the run, which manifests in dimming and incomplete coloring of some of the LEDs.The WLED firmware that comes pre-flashed on these controllers is really nice as it does not require an account or login in any way. These can be used fully offline, you don't even have to connect them to your network as they broadcast their own access point by which you can connect and configure them, though connecting them to your network makes management much easier. I understand there are mobile apps, though at this point I have only used the web UI and the command line.There are numerous presets to choose from, and with this controller I explored the microphone option; looking back, most of the controllers I have support the mic function, though I had never thought twice about it before. It did take a small amount of configuring to get the mic to work, but it certainly does work and adds some dynamism to the LEDs. I found 24 mic-enabled presets as indicated by the '♫' or the '♪' in the preset names in the WLED web UI. The instructions that came with the controller walked through how to set up and enable the microphone, and following those steps worked for me. My added video shows my garage with a string of LEDs all around the perimeter at the top of the wall. The controller's mic is picking up the sound of me punching a punching bag.Another nice thing about these controllers is that they support 5V, 12V and 24V LEDs, though only one voltage at a time, and the power supply and the LED voltages in use must match. This improves interchangeability as you can try several different power supplies and LEDs with the same controller, and there is no need to convert voltages yourself. For $27 this is a fine price for a controller with two ARGB data lines.

[Size: SP805E Controller]
If you are a smart home enthusiast, developer, or gamer looking to build a high-performance, responsive lighting setup, the BTF-LIGHTING SP805E-WLED Controller with Onboard Microphone is an absolute masterpiece. While standard LED controllers force you into generic, laggy pre-packaged apps, this unit is built around a heavy-duty ESP32 chip and comes optimized for the open-source WLED platform, completely changing how you manage custom lighting. 🖥️🎵Here is my honest, technical breakdown of how this standalone controller performs:The Audio-Reactive Advantage: 🎤🔥The absolute killer feature of this specific variant is the built-in high-sensitivity microphone. WLED has an incredible, community-driven audio-reactive mod that processes ambient sound frequencies natively on the dual-core ESP32 chip. Unlike other controllers that lag because they pass audio signals through a smartphone app over Bluetooth, this on-board mic samples audio instantly. The visual synchronization is flawless—whether you are tracking intense gaming soundscapes, pairing it with desktop speakers, or setting up a music-pulsing grid panel, the lighting frames react smoothly without visible latency.Unmatched Hybrid Strip Compatibility: 🎛️🌈The hardware layout is a dream for multi-room decorators because it natively drives both digital SPI addressable and analog PWM strips simultaneously.SPI Addressable: Provides 2 independent data channels supporting up to 2,048 pixels per channel for advanced IC chips like WS2812B, WS2811, SK6812 (including clean RGBW white-channel management), WS2814, and WS2815.Analog PWM: Directly controls non-addressable standard single-color dimming, dual-white CCT, standard RGB, RGBW, or complex 5-channel RGBCCT setups.Developer-Friendly Architecture: 🛠️💻BTF-LIGHTING built this explicitly with power users and WLED developers in mind. The case hides a built-in USB-C UART programming port, which lets you hook it straight up to a PC to flash the latest beta firmwares or debug code via serial terminal—no tricky external FTDI breakout boards required. It safely handles a massive wide voltage range (DC 5V, 12V, or 24V) and supports up to 6A per channel (12A total), letting you run massive physical loops easily.Smart Home Server Ecosystems: 🤖🏠Because WLED runs completely locally on your home 2.4GHz Wi-Fi network, it integrates cleanly with zero-latency smart home setups. It is recognized instantly by Home Assistant, allowing you to write localized templates, tie it into motion sensors, or build conditional scripts without ever relying on an outside internet connection or proprietary cloud gateways.Things to Keep in Mind: ⚠️Voltage Safety Check: Remember that this device acts as a control pass-through; it does not drop or raise voltage. You must use a power supply brick that matches your strip's exact rating (e.g., do not plug a 12V power supply into the box if you are running standard 5V WS2812B strips, or you will immediately cook the LEDs).Audio Fine-Tuning: To get the absolute best out of the sound-reactive features, jump into the WLED web configuration under "Usermods" and tweak your Squelch (noise floor cutoff) and Gain levels. This ensures the lights stay perfectly still during absolute silence but dance dramatically the moment music kicks in.Final Verdict: 🎯For the price of a generic, locked-down controller, this gives you a clean, safe, mass-produced case housing a high-spec ESP32, an embedded microphone, and physical terminal blocks. It completely eliminates the tedious breadboarding, soldering, and level-shifting of a DIY board while keeping all the raw coding freedom intact. If you want a professional-grade WLED ecosystem, this is the definitive model to get. Highly recommended! 👍
