WiFi Tunable White LED Strip Controller

[Size: 1 x Controller]
This Wi-Fi tunable controller for 3-pin COB/SMD (CW/WW) let us dim and warm the kitchen strips from a phone instead of a wall clicker. Pairing was manageable, tunable white is the feature we wanted for evening versus task light, and 3-pin matched the tape we already had. Schedules are a bonus we actually use.Wi-Fi lighting is only as good as your 2.4 GHz network. For COB strips that needed a smarter driver, this controller has been a solid upgrade.

[Size: 1 x Controller]

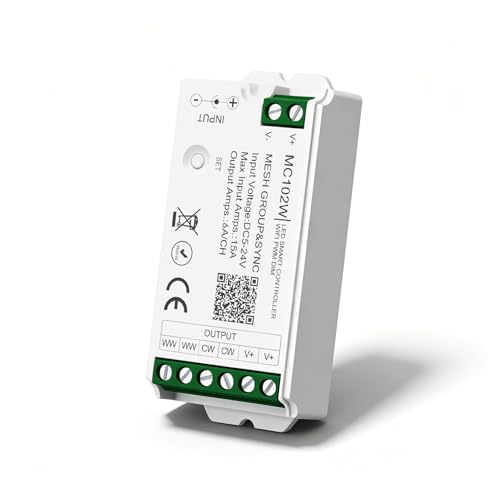

This box makes it a simple job to add LED lighting to a room or project. It will control PWM Warm White or Cool white strips and 3 wire PWM WW/CW strips that use 24v, 12V, or 5V's. I do not know why "zones" are used in the advert text or that others state it controls zones.. this box has "WW | WW | CW | CW | V+ | V+" connections;3-wire WW/CW PWM CCT strips: 2 convenient physical connections; both operate together2-wire WW-only PWM strips: 2 convenient connections; both operate together, and potentially more strips via parallel wiring if current capacity allows. So this box will NOT control 4 zones independently.The box itself is well made with secure screw terminals for connections, and very similar to Itead devices.

[Size: 1 x Controller]
The Aclorol WiFi Tunable LED Controller is a great way to upgrade and customize LED lighting. It was easy to install and connects smoothly for convenient control. The ability to adjust brightness and color settings makes it simple to create the right atmosphere for any room. It works reliably, responds quickly, and adds a lot of flexibility to my LED setup. Overall, it’s a useful and affordable controller that performs well.

[Size: 1 x Controller, Size: 1 x Controller]
For the DIY LED light strip installer, this controller is a perfect addition to your lighting installation. With a smart wifi controller built in and a phone app to control it, you can easily set up the color temperature and the brightness without using a dimmer switch or physical button controller to adjust the temperature settings. It has two power inputs depending on if you are physically wiring it to a DC power input via positive/negative wires or a plug input from an AC/DC converter. With that said, this isn’t an AC to DC converter and requires a DC input so if you’re installing under the kitchen cabinet LED lighting and directly wiring it to a light switch you’ll still need a converter.

[Size: 1 x Controller]
I just finished a lighting upgrade using these Aclorol CCT controllers, and I am thoroughly impressed. I was specifically looking for a reliable solution for my 3-wire PWM tunable white strips, and this controller delivers on all fronts. I've been using it for a few weeks now, managing everything via the Tuya/Smart Life app, Alexa, and the optional RF remote, and here is my detailed breakdown.🔧 Installation & Wiring: A ReliefThe first thing I noticed was the heavy-duty screw terminals. I've had nightmares in the past with spring-type terminals loosening over time and causing flickering, but these screws provide a rock-solid connection. The wiring diagram in the manual is high-resolution and incredibly clear, which made matching the +CW, WW, and GND wires painless.Tip for Installers: The controller handles 5V, 12V, and 24V beautifully. I'm running 24V strips, and the stability is excellent. Just pay attention to the port limits: Port 1 maxes at 6A and Port 2 at 15A. I made sure to distribute my loads accordingly to stay within the rated current, and the dimming is completely flicker-free, even at the lowest brightness levels.📱 App & Smart Control: FlawlessThe integration with Tuya/Smart Life is seamless. Pairing to my 2.4GHz WiFi was instant, and the connection has remained stable with no dropouts.Color Temperature: The adjustment from 2700K to 6500K is incredibly smooth. I use 6500K for morning productivity in the home office and switch to 2700K in the living room for evening relaxation. The transition feels natural and the color rendering is accurate.Voice Control: Alexa and Google Home integration works perfectly. I've set up routines like "Alexa, movie mode," which dims the lights to 3000K at 40% brightness instantly.Schedules: I've programmed schedules for my kitchen and hallway, so the lights automatically shift to a brighter daylight white in the morning and warm down at night. It's a game-changer for daily comfort.🏠 Group Control & ZonesThe 4-zone group control is fantastic. I've grouped my strips into "Living Room," "Bedroom," "Kitchen," and "Office."App Control: I can create unlimited groups in the app to control specific areas independently.Last State Memory: This is a small but brilliant feature. The controller remembers my preferred brightness and color temperature. When power is restored or the switch is toggled, the lights snap back to my exact last setting. No more resetting modes manually every time!⚠️ Important Notes for BuyersStrip Compatibility: This is strictly for PWM CCT Dual-White 3-Wire strips. It does not work with single-color, RGB, or SPI addressable strips. Double-check your strip wiring before buying.WiFi Requirements & Setup2.4GHz Only: This device only supports 2.4GHz WiFi networks and does not work with newer 5GHz protocols.Network Compatibility: I use a dedicated 2.4GHz IoT network for automation and weather devices, so no additional hardware was needed for me.If you have an older wireless device that allows you to bypass its built-in router function, this setup works great with it.Configuration Steps:- Enable AP Mode on the device. (If your device does not support this find another, most good routers will) Device will reboot or ask to be done so. If you need one, they are dirt cheap as nobody wants them today except for IT guys power users.- Connect your Ethernet cable to one of the LAN ports.- Leave the WAN port disconnected, it will not work in this mode.✅ Final VerdictThe Aclorol CCT Controller is a robust, feature-rich solution for anyone upgrading to tunable white lighting. The screw terminals give me peace of mind, the Tuya ecosystem offers full customization, and the performance is stable and flicker-free to the eye and most cameras. If you have 3-wire PWM strips and need reliable smart control with good group management, this is highly recommended.

[Size: 1 x Controller, Size: 1 x Controller]
This smart LED driver controller offers a highly versatile and customizable solution that works perfectly with DIY LED strips for custom home, workshop, or architectural lighting projects. Designed for low-voltage applications, the controller accommodates a wide input voltage range from DC 5V to 24V and supports a maximum total current load of 15A. The user manual outlines specific power limitations, reminding builders that connected setups should not exceed 75W at 5V, 180W at 12V, or 360W at 24V to prevent overloading and potential overheating.The system features an extensive wiring guide tailored across multiple hardware variants, including the MC101A, MC101W, MC102W, and MC206W models, to ensure straightforward installation. The standard two-wire and three-wire models accommodate single-color and dual-white CCT configurations, while the comprehensive MC206W model acts as a 5-in-1 controller capable of running complex 2-wire to 6-wire strips including RGB, RGBW, and RGB CCT setups. An integrated SET button on the device allows users to effortlessly cycle through operational modes, activate network pairing for smart features, or reset the unit.Safety and hardware preservation are emphasized throughout the instructions, highlighting the importance of disconnecting all power before starting any wiring to ensure you never work on live circuits. The guide warns that proper polarity must be strictly observed, as reversing the positive and negative connections will permanently damage the controller. Additionally, the unit is intended for placement in dry, well-ventilated, non-metal enclosures away from high humidity. Combining flexible multi-mode support with definitive safety guidelines, this smart controller serves as an ideal hub for building customized, multi-channel lighting arrays.

[Size: 1 x Controller]
This is a welcome addition to my collection of Tuya compatible items with known quality software support. I have started the process by connecting it to a standard USB power adapter to the Input with the 5.5mm jack for 5VDC. This is enough power to set up this unit with Bluetooth on a phone and the Tuya Smart Life app. After initial set up, it will connect on your WiFi after you enter the ID and password for your system. After it's connected, it can then control the LED string(s) within the app. So far, everything has gone smoothly and it should be compatible with my 3 wire LED strings that are currently being controlled with two separate power blocks on a proprietary system that works (most of the time) but the two strings are controlled by one remote. It works well most of the time, but it will be much better to have the two strings on one 24V power supply through this LED controller and both strings will operate as one in the Tuya app. If you have other functions and devices there can be some interoperability if you want this along with compatibility with Alexa and Google features.

[Size: 1 x Controller, Size: 1 x Controller]
This module seems to work well, and it is very compact. It's compatible with home assistant as well as Alexa, and the wifi signal seems solid; I have not noticed any dropouts in the Wifi, but since I'm currently using the Tuya Cloud integration with home assistant right now it seems slow to respond to changes compared to my other Tuya devices. I will try with LocalTuya soon and report whether it works any faster (as I expect this will help the latency). Installation has been simple enough. Connect a 12v DC power supply to it, and then connect the wifi strip directly to the controller's output. Overall a simple controller that does what I wanted. I'm only using it with cold white LED's but it will handle warm white as well.
