Low Voltage Landscape Transformer

[Set name: 300W]
This thing is fancy! I don't think I have ever described a landscape lighting transformer as beautiful before, but this one almost seems too pretty to put outside. The stainless steel housing gives it a substantial, finished appearance that is a big step up from the basic outdoor transformers we have used.More importantly, it has plenty of power. We have a lot of low voltage lighting around our farm, and this 300 watt transformer handles our setup beautifully. When you are powering more than a few little pathway lights, having that capacity matters.I also really like the amount of control it provides. You can use the photocell to have the lights respond to dusk and dawn, choose a set number of hours after dusk, or create a schedule. That flexibility is useful for us because not every outdoor light needs to stay on all night.The enclosed stainless steel design is another feature I appreciate for something that has to live outdoors. The controls are protected behind the door rather than completely exposed.This is definitely more transformer than someone needs for a handful of landscape lights, but for a larger property or a substantial outdoor lighting system, that is exactly the point.Beautiful, substantial and powerful enough for our farm full of low voltage lights, this feels like a serious piece of outdoor equipment rather than an afterthought.

[Set name: 300W]
Easy to install and set great for outdoor lights and things

[Set name: 300W, Set name: 300W]

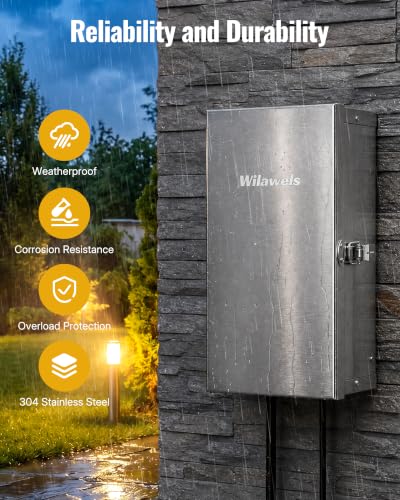

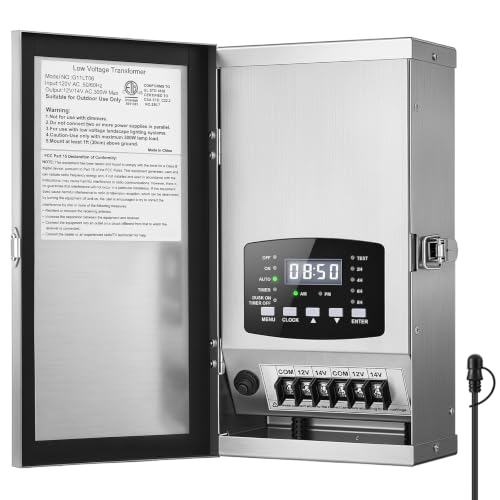

I love the construction of this Wilawels low voltage transformer. I ran a small test replacing my antiquated low voltage light transformer, but forgot to take pictures as I am planning to use this in my backyard.Here’s what I like:- seriously heavy duty stainless steel construction in a beautiful brushed natural stainless steel shell.- This is a serious transformer and weighs as such coming in at probably around 10 lbs in weight!- Flexibility: the unit supports two independent runs, with their own programming and an option to output 10v or 14v power.- Fully programmable, it also offers dawn to dusk automated function via a remote light sensor… so, place the transformer under a deck or in a shed and run the light sensor to where you want it.-Lockable housing and tamper proof latch.This is a well built, highly weather resistant and stain resistant. A high quality unit that’s going to last! The value for the money is excellent. Only part that’s missing is Bluetooth or WiFi controls… but you’ll pay for that.

[Set name: 300W]

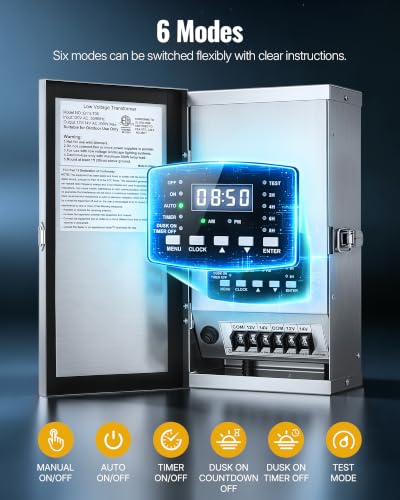

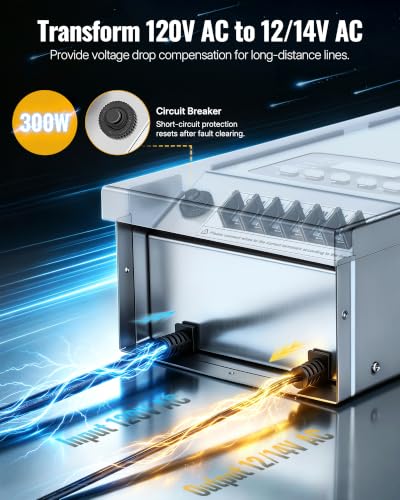

Outdoor lighting is much more enjoyable when it turns itself on instead of requiring a nightly walk to a switch like a tiny municipal employee. This WILAWELS transformer handles that job while converting standard 120V AC power into safer 12V or 14V AC for compatible landscape fixtures. Its 300W capacity makes it suitable for more than a couple of decorative path lights pretending to illuminate the yard. It can support a broader collection of spotlights, pathway fixtures, and accent lights when the system is designed within its electrical limits.The selectable 12V and 14V outputs provide useful installation flexibility. A 12V connection works for many ordinary low-voltage lighting runs, while 14V can help offset voltage loss over longer cable distances. The higher output should not be selected blindly because fixtures still need to receive voltage within their specified range. Measuring the voltage at the first and last fixtures is the sensible way to confirm that the system is behaving.The 300W figure represents maximum capacity, not a personal challenge. Adding the wattage of every connected fixture provides the starting load, but leaving unused headroom is better than operating continuously at the limit. LED fixtures make it easier to build a larger system because their power requirements are typically lower than older halogen landscape lights. Future expansion should also be considered before every available watt is assigned on day one.Wire size and cable length affect performance almost as much as transformer capacity. Long distances, undersized wire, and heavily loaded runs can cause dimmer lights toward the end of the circuit. Dividing a large layout into multiple cable runs can improve voltage consistency and simplify troubleshooting. Low-voltage wiring is forgiving, but it is not impressed by physics being ignored.The timer adds practical control over how long the lighting operates after activation. The photocell senses surrounding light and can start the system automatically when evening begins. Its location is critical because porch lights, security fixtures, passing headlights, or even the connected landscape lights can interfere with accurate sensing. Mounting the transformer where the photocell sees natural ambient conditions helps prevent irregular switching.Installation requires a secure vertical mounting surface, access to an outdoor electrical receptacle, and properly prepared low-voltage cable. The housing is described as weatherproof, but it should still remain above ground and away from locations that flood or collect irrigation water. Cable connections need to be tight and free of stray copper strands, because loose outdoor electrical connections rarely improve with age. The ETL listing provides additional confidence that the transformer has been evaluated to applicable safety requirements.The main limitations involve installation planning rather than daily operation. Photocell placement can be finicky, longer cable runs may require larger wire or the 14V output, and a heavily loaded system can reduce performance. Once those factors are handled correctly, the transformer provides steady low-voltage power and convenient automatic control without needing constant attention. The combination of 300W capacity, selectable voltage, timer operation, photocell sensing, weatherproof construction, and ETL listing makes it a capable foundation for a serious landscape lighting system. Great value for the price and quality! ✅

[Set name: 300W, Set name: 300W]
I am a low voltage guru that doesn't get impressed by much, but this transformer is really impressive to me, and I am so glad I got this one. WILAWELS really has made an impressive and top-quality product here with this 120VAC to 12VDC and/or 14VDC, 300W low voltage transformer. It is very heavy-duty, stout, and top-notch from top to bottom. The housing is made from all stainless-steel and well-sealed for outdoor use and weather protection. The versatility and functionality are excellent too. It has multiple options to choose from just standard on/off, or the 6.6-foot corded remote photocell sensor opens it up for complete automatic operation for dusk to dawn setting or timer settings for 2, 4, 6, or 8 hours of lighting and automatic shut-off after personalized set desired timeframes. All connections are made through the bottom, the best possible setup, with water resistant grommets pre-installed to run supply lines through for the connections. The electrical connection points are also slanted at an angle downward for any potential condensation to run away from the business end of the electrical components. This box is a bit heavy at approximately 11lbs., which is indicative of a good quality build. It is built like a tank, to last for a long time, and for $110, it is a good value for the money in my opinion. It measures approximately 9" tall x 5.7" wide x 3.2" deep and has a 3.3-foot-long AC power cord that plugs into a standard household AC outlet. Installation is extremely simple and quick with the included 2 screw stainless steel bracket with mounting screws and wall anchors included. Mount the bracket and slide the transformer onto the bracket in less than 2 minutes. This transformer has also been tested by a 3rd party laboratory Intertek for safety, and it is ETL listed and certified making me feel very good and comfortable using it in our landscaping system. It is a quality made, durable and stout transformer for a good price, and I HIGHLY recommend it to anyone!
