CNLONQ Solar Panel Disconnect Switch 20A~63A 1000V DC PV Circuit Breaker IP66 Waterproof with Connector and Install Hook for Outdoor Home Solar Panel Systems
CNLONQ Solar Panel Disconnect Switch 20A~63A 1000V DC PV Circuit Breaker IP66 Waterproof with Connector and Install Hook for Outdoor Home Solar Panel Systems
Key Features

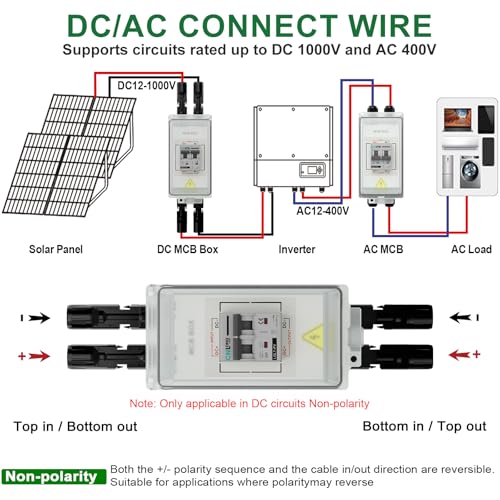

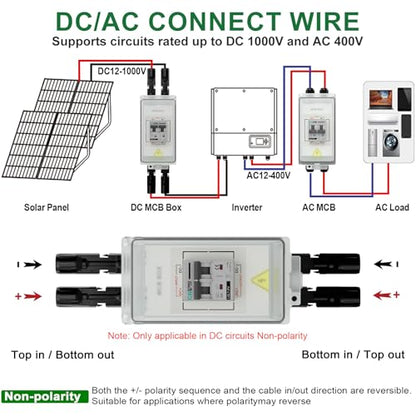

- Solar Disconnect Switch: This circuit breaker box maximum support DC1000V(AC400V) 20/30/40/60Amp circuits with a non-polarity design, delivering superior isolation, overvoltage, and overload protection. It effectively prevents circuit damage, reduces fire risks, and ensures the longevity and safety of solar systems

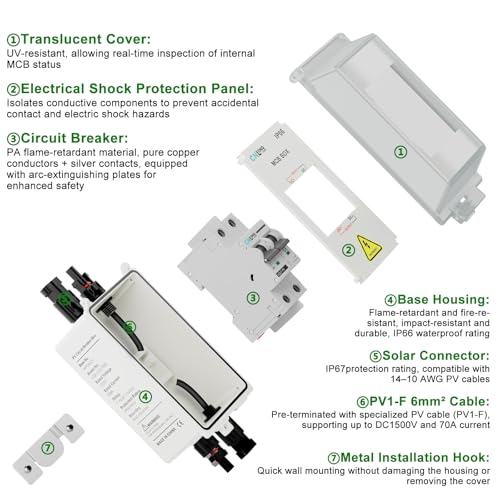

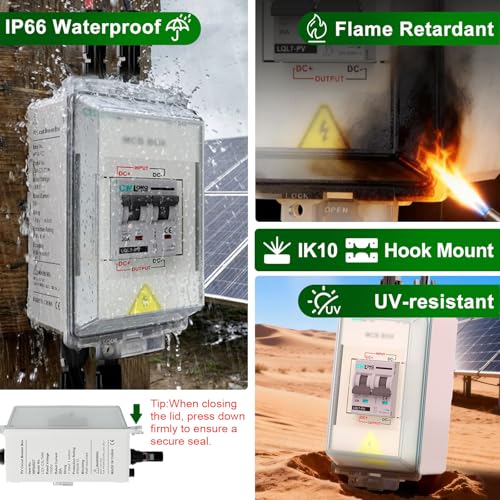

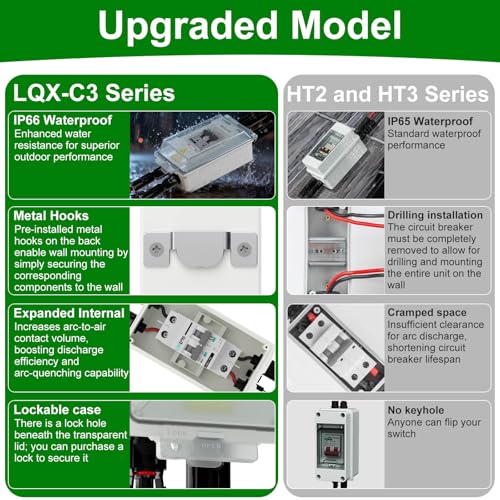

- IP66 Waterproof: The waterproof enclosure is constructed from PC material with IP66 waterproof rating and UV resistance, providing effective protection for outdoor use in harsh weather and environments. Additionally, flame retardants are incorporated to ensure safety, achieving V1 flame retardant rating. The transparent cover facilitates easy inspection of the circuit breaker's status

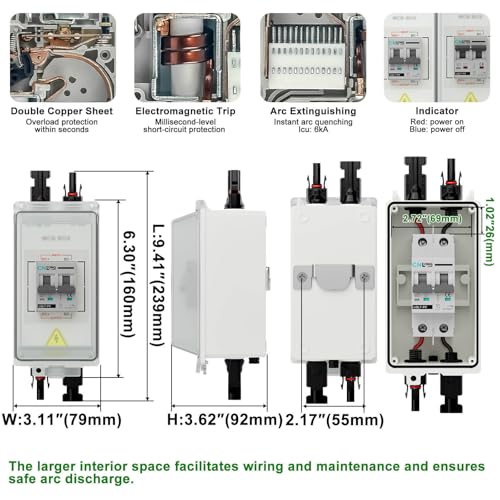

- Easy Installation and Ample Space: Features connectors for plug-and-play setup. Pre-installed metal hooks on the back allow direct mounting on walls and other flat surfaces. Installation requires no disassembly of the box or damage to the housing. The interior provides sufficient space for effective heat dissipation and safer arc extinguishing

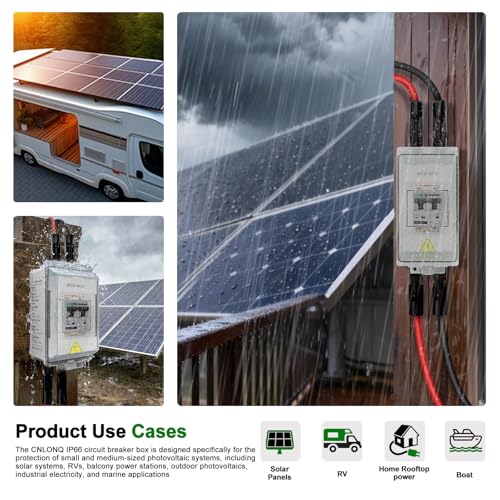

- Versatile Applications: Suitable for grid-connected and off-grid solar systems, balcony power stations, residential buildings, RVs, rooftops, and various wind and solar energy systems

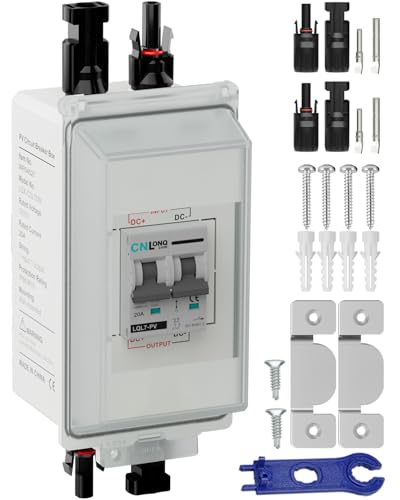

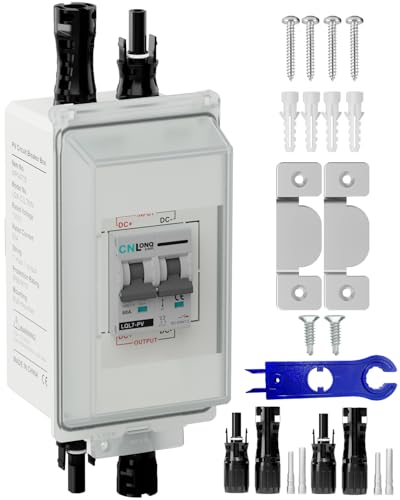

- Packaging & Service: Should you encounter any issues with your product, please contact our platform or customer service center at any time for premium support. This product holds CE, IP66, and IEC certifications, complying with IEC 60947-2 standards. Packaging includes one IP66 circuit breaker, mounting screws, expansion tubes, metal hooks, solar connectors, a wrench, and an instruction manual

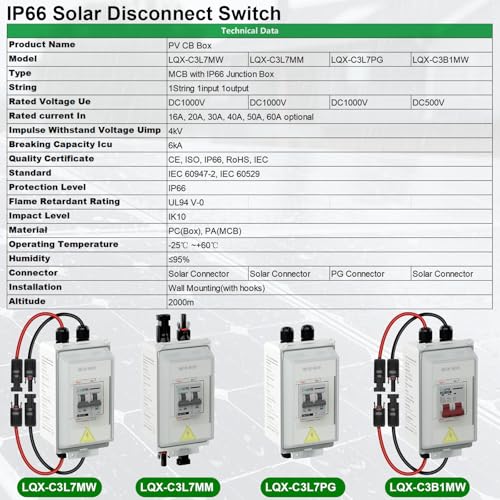

Specifications
| Brand | CNLonQcom |
| Product Type | CIRCUIT_BREAKER |
| Item Type Keyword | miniature-circuit-breakers |
Couldn't load pickup availability
- 5 stars: 1 (100%)
- 4 stars: 0 (0%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
[Color: 20A, Color: 20A]
Well-appointed kit. I love the panel-mounted MC4s on the box. It's more compact and efficient than the ones with dangling wires. The kit comes with an extra four MC4 connectors and some mounting equipment. All the connectors feel solidly crimped, and the wires and glands are properly matched for waterproofing. Inside, the wires are crimped with ferrules and the gland screws are nice and tight.The wires are labeled 6.0mm² which is roughly 9-10AWG. This is sufficient for up to a 50A breaker, maybe even 60A since they are 90°C rated... although, who knows if these MC4s would handle that much before melting. Either way, it's passable. I’ve certainly seen worse. The breaker itself is properly rated for solar installs, with a rated voltage of 1000V and breaking current of 6kA. Pretty impressive for a breaker of this size and type.
